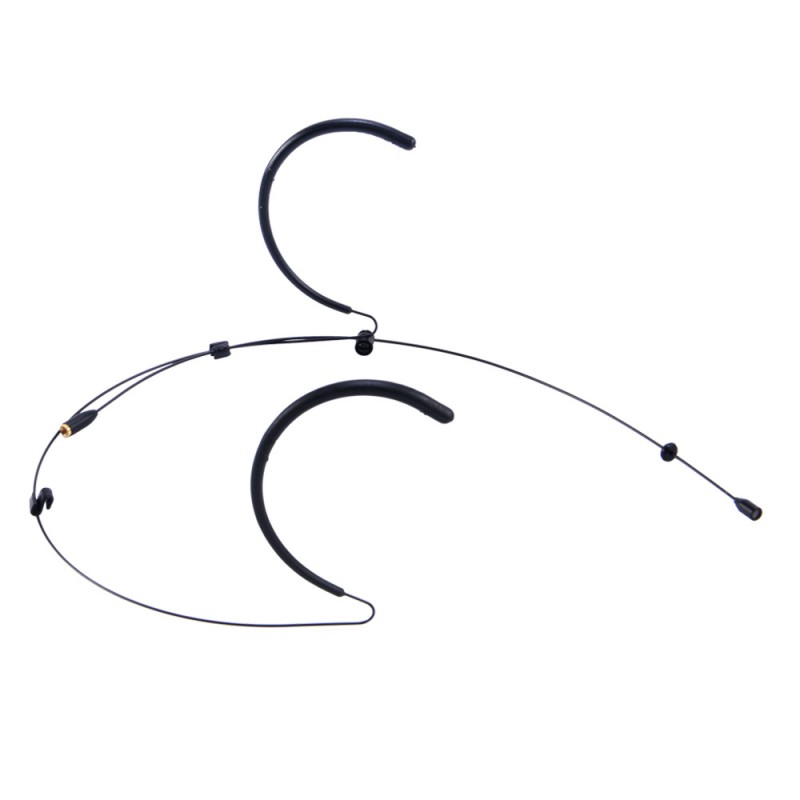

Heimu H336 Mini headset microphone is ideally suited for vocal sound which requires much freedom of movement.

The unique tiny size and super light weight provides a comfortable and optimum fit for any occasion.

Such as dance and sports instructors, Great for video use ,the mini microphone is practically invisible.

The microphone ensures a perfect blend of the microphone for discreet appliance.

It comes with multiple replaceable cable making it suitable for use

with belt packs of various major manufactures.

Element:................ ..............Back Electret CondenserPolar

Pattern: ................................Omni-Directional

Frequency Response:.........20Hz-20KHz

Sensitivity: ...........................-42±3dB

Output Impedance: ............2KΩ+3O%

Max.Input SPL: ....................135dB

Power Supply: .....................DC 1.5-9 V

Cable: ...................................Φ1.5*1 .2M

Dimension(Capsule): ..........Φ3.5

Weight:.................................. ~0.O24Ib (No including pIug)

Accessories: ..........................Windscreen, CIip

Connector(Changeable):

-SE: Sennheiser type 3.5mm plug-

-AK: AKG type 3pin mini XLR.

-SH: Shure type 4pin mini XLR

-AT: Audio-Technica tpye 4pin mini XLR
-ST: Special thread type 3.5 single plug

Connection port
SE	SENNHEISER type 3.5mm stereo plug
SH	SHURE type 4pin mini XLR(4p)or other
AK	AKG type 3pin mini XLR(3p)or other
AT	Iron triangle mini 4P IN plug
ST	Special thread type 3.5 single plug

Headset Microphone

Cable Interface

Qty

HEIM Electronic Technology CO.,LTD.
